✨ What is RecallOS?

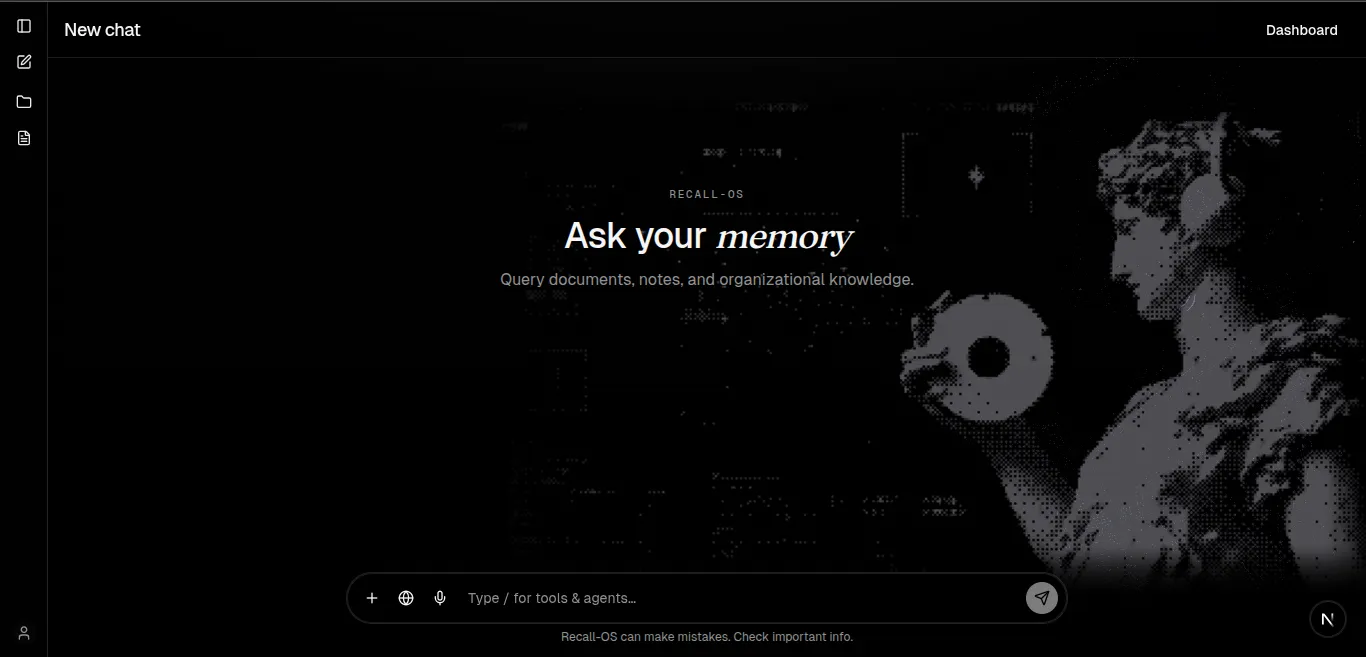

recallos

A multimodal memory architecture for persistent retrieval over heterogeneous enterprise knowledge. Upload PDFs, images, audio, and video — then chat with an AI that cites its sources.

🚀 Core Features

Feature	Description
📄 Multi-modality upload	PDF, images, audio, video via MinIO presigned URLs
🏭 Modality-aware ingestion	Per-modality parser workers dispatched by MIME type
🧩 Decoupled embedding	Modality-agnostic dense + sparse embed, re-embeddable without reparsing
🔍 Hybrid search	Dense BGE + sparse SPLADE in Qdrant, fused with RRF
🎯 Cross-encoder rerank	Top chunks reranked before LLM context injection
💬 Streaming chat	SSE streaming with source chunk citations + optional modality filter
🌐 Web research agent	`/web` prefix triggers LangGraph loop (Exa → reason → refine → answer)
📂 Projects	Organize chats with custom system prompts
📌 Chat history	Pin, delete, version (edit/resend), and rolling conversation summaries
📊 Langfuse tracing	Full observability for chat RAG and ingestion pipelines
🔄 Dead Letter Queue	Failed document processing with retry and reprocessing
🏗️ Modular chat UI	14-file component architecture with custom hooks and focused modules

🛠️ Tech Stack

Layer	Technology
📦 Monorepo	Bun workspaces + Turborepo
🖥️ Frontend	Next.js 16 (App Router), React 19, Tailwind CSS v4
⚙️ Backend	Express 5 (JWT middleware on all routes except auth)
⚡ Runtime	Bun
🔐 Auth	JWT + bcrypt
📨 Queue	Redis Streams (consumer groups, XAUTOCLAIM)
🗄️ Object storage	MinIO (S3 API)
🐘 Metadata	PostgreSQL + Prisma 7
🧭 Vectors	Qdrant (dense + sparse named vectors)
📐 Dense embeddings	BGE-small-en (`fastembed`)
🔤 Sparse embeddings	SPLADE++ EN v1 (`fastembed`)
🎯 Rerank	Hugging Face cross-encoder (`ms-marco-MiniLM-L6-v2`)
📑 Parsing	LlamaParse (LlamaCloud)
🤖 LLM	OpenRouter
🌐 Web search	Exa + LangGraph agent
🔭 Observability	Langfuse (OpenTelemetry)

🏗️ Architecture

  ┌────────────┐         presigned PUT          ┌────────┐
  │  Next.js   │ ─────────────────────────────▶ │ MinIO  │
  │    web     │                                │(assets)│
  └─────┬──────┘                                └───┬────┘
        │                                           │
        │ REST (JWT)                                │ object key
        ▼                                           │
  ┌─────┬──────┐    xAdd to files_stream       ┌────▼─────┐
  │  Express   │ ───────────────────────────▶  │  Redis   │
  │  backend   │                               │ Streams  │
  └─────┬──────┘                               └───┬──────┘
        │                                          │
        │ hybrid query + chat                      │ Dispatcher
        │                                          │ (routes by MIME)
        ▼                                          ▼
  ┌───────────┐                            ┌───────┬────────┐
  │  Qdrant   │                            │ pdf_stream     │
  │ dense +   │ ◀─── embed_stream          │ image_stream   │
  │ splade    │                            │ audio_stream   │
  └───────────┘    embedding worker        │ video_stream   │
                                           └───────┬────────┘
        │                                          │
        │             ┌───────────┐                │
        └──────────▶  │ Postgres  │ ◀──────────────┘
                      │  + users  │    Parser workers
                      │  + docs   │    (per modality)
                      │  + chunks │
                      │  + chats  │
                      └───────────┘

🔄 Ingestion Pipeline

Documents of any modality are accepted (PDF, images, audio, video).

 ┌──────┐   presigned URL    ┌───────┐    bytes      ┌───────┐
 │Client│ ─────────────────▶ │Express│ ────────────▶ │ MinIO │
 └──┬───┘                    └───┬───┘               └───────┘
    │                            │
    │ POST /confirm              │
    ▼                            ▼
 ┌──────────┐  xAdd  ┌──────────────┐
 │ Document │ ─────▶ │ files_stream │
 │ UPLOADED │        └──────┬───────┘
 └──────────┘               │ Dispatcher
                            │ (MIME detection)
          ┌─────────────────┼─────────────────┐
          ▼                 ▼                 ▼
   ┌────────────┐   ┌────────────┐     ┌────────────┐
   │ pdf_stream │   │image_stream│ ... │video_stream│
   └─────┬──────┘   └─────┬──────┘     └─────┬──────┘
         │                 │                 │
         ▼                 ▼                 ▼
   ┌───────────┐    ┌───────────┐      ┌───────────┐
   │  QUEUED   │    │  PARSING  │      │   PARSED  │
   └─────┬─────┘    └─────┬─────┘      └─────┬─────┘
         │                │                  │
         ▼                ▼                  ▼
   ┌──────────────────────────────┐     ┌──────────────┐
   │   ParsedChunkSet + Chunks    │──▶  │ embed_stream │
   │   (Postgres)                 │     └─────┬────────┘
   └──────────────────────────────┘           │
                                              ▼
                                        ┌───────────┐
                                        │ EMBEDDING │
                                        └─────┬─────┘
                                              │
                                   ┌──────────┴────────────┐
                                   ▼                       ▼
                         ┌───────────┐             ┌───────────┐
                         │  Qdrant   │             │   READY   │
                         │  vectors  │             │ (or FAIL) │
                         └───────────┘             └───────────┘

Recovery: Each stream has its own consumer group. Workers run a stale-job reclaimer (XAUTOCLAIM). After MAX_RETRIES, jobs move to a Dead Letter Queue (dlq_stream).

🔍 Retrieval & Chat

  ┌──────────────────┐
  │   User message   │
  └────────┬─────────┘
           ▼
  ┌──────────────────┐
  │ Embed query      │
  │ dense BGE +      │
  │ sparse SPLADE    │
  └────────┬─────────┘
           ▼
  ┌──────────────────┐
  │ Qdrant hybrid    │  prefetch dense top-50
  │ query            │  prefetch sparse top-50
  │                  │  fuse with RRF → top 50
  │                  │  (filtered by user's docs)
  └────────┬─────────┘
           ▼
  ┌──────────────────┐
  │ Cross-encoder    │
  │ rerank → top 5   │
  └────────┬─────────┘
           ▼
  ┌──────────────────┐
  │ System prompt +  │
  │ recent history + │
  │ project prompt   │
  └────────┬─────────┘
           ▼
  ┌──────────────────┐
  │ OpenRouter SSE   │
  │ stream           │
  └────────┬─────────┘
           ▼
  ┌──────────────────┐
  │ Answer + sources │
  │ stored on msg    │
  └──────────────────┘

💬 Chat Features

Feature	Details
🔄 Streaming replies	Real-time SSE streaming from OpenRouter
📎 Source citations	Each answer carries ranked chunk references
📂 Projects	Organize chats with custom system prompts
📌 Pin / delete	Manage chat history
✏️ Edit & resend	Create version branches (1/2, 2/2)
🌐 Web mode	`/web` prefix triggers LangGraph research agent
📊 Live agent steps	Watch the web agent search, reason, and refine in real-time
📝 Conversation summaries	Rolling summaries injected into later prompts

🔌 API Surface

Base path: /api/v1 (JWT middleware on all routes except /auth/*).

Area	Methods	Description
🔐 Auth	`POST /auth/signup`, `POST /auth/signin`	User registration & login
📤 Upload	`POST /upload/post-file-url`, `POST /upload/confirm`	Presigned URL flow
📄 Documents	`GET /download/list`, `POST /download/get-download-url`, `DELETE /download/:id`	File management
💬 Chat	`GET /chat`, `GET /chat/:id`, `PATCH /chat/:id`, `DELETE /chat/:id`, `POST /chat/message`	Chat CRUD + SSE streaming
📂 Projects	`GET/POST /projects`, `PATCH/DELETE /projects/:id`	Project management

🖥️ Frontend Routes

Route	Purpose
`/`	Landing page (redirects to chat if signed in)
`/signin`, `/signup`	Authentication
`/dashboard`	Upload documents, view status, download / delete
`/chat`	Full chat UI with history, projects, sources, web agent

🗃️ Data Model (Postgres)

Model	Role
`User`	Username + hashed password
`Document`	Title, object key, `mimeType`, `modality`, status (`UPLOADED` → `READY` / `FAILED`)
`ParsedChunkSet`	Group of parsed chunks per modality, status (`PARSED` / `INDEXED`)
`ParsedChunk`	Individual text chunk with JSON metadata (page, timestamp, caption, OCR, etc.)
`Project`	Named workspace + optional system prompt
`Chat`	Title, pin, optional project, summary fields
`Message`	role, content, `sourceChunks` JSON
`Memory`	Schema for durable facts (not wired into chat yet)

Chunk vectors live in Qdrant with payload including documentId, chunkId, modality, page, timestamps, caption.

💾 Storage Roles

Store	What it holds
🗄️ MinIO	Original asset files (PDF, images, audio, video)
🐘 PostgreSQL	Users, docs, chunk sets, chunks, chats, messages, projects
📨 Redis Streams	Multi-stream job queue per modality + consumer group PEL + DLQ
🧭 Qdrant	Per-chunk dense + SPLADE vectors and text payload

There is no OpenSearch — lexical signal comes from SPLADE sparse vectors inside Qdrant, fused with dense cosine via RRF.

🔭 Observability

@repo/langfuse instruments:

Pipeline	Traced steps
💬 Chat RAG	`hybrid-retrieve` → `cross-encode-rerank` → `generate-response`
🌐 Web agent	LangGraph nodes (search → reason → refine → answer)
📄 Ingest	`process-document` and nested per-modality steps

If Langfuse keys are missing, tracing no-ops silently.

Key design decisions:

🪝 Custom hook (useChatState) encapsulates ~50 state variables and all SSE streaming logic
🧩 Presentational components are pure — they receive props and render
📦 Types & helpers are shared across all modules via local imports
🔌 Zero changes to the route import (import ChatPage from "@/components/chat-app" resolves to index.tsx)

🏃 Local Development

📋 Prerequisites

Bun ≥ 1.3
PostgreSQL
Redis
MinIO
Qdrant
API keys: LlamaCloud, OpenRouter; optional HF, Exa, Langfuse

🚀 Quick Start

# 📦 Install dependencies
bun install

# ⚙️ Configure environment (root and/or apps/*)
# Typical keys: DATABASE_URL, MinIO, JWT_SECRET, PORT,
# STREAM_NAME / GROUP_NAME, COLLECTION, DENSE_DIM,
# OPENROUTER_API_KEY, LLAMA_CLOUD_API_KEY, etc.

# 🗃️ Apply Prisma migrations
cd packages/db && bunx prisma migrate dev

# 🏃 Start everything (web + backend + workers)
bun run dev

🎯 Run Individually

bun run --filter web dev        # 🖥️  Next.js on :3001
bun run --filter backend dev    # ⚙️  Express on :3000
bun run --filter workers dev    # 🏭 All workers
bun run --filter workers dev:pdf       # 📄 PDF worker only
bun run --filter workers dev:embedder  # 🧮 Embedder only
bun run --filter workers dev:dlq       # 🔄 DLQ worker only

🔧 Development Commands

Command	Purpose
`bun install`	Install dependencies
`bun run dev`	Start all apps via Turborepo
`bun run build`	Production build
`bun run lint`	ESLint (web: `--max-warnings 0`)
`bun run check-types`	TypeScript check
`bun run format`	Prettier (`--write`)
`cd packages/db && bunx prisma migrate dev`	Apply migrations

🧭 Design Principles

Principle	Description
⚡ Async ingest	Uploads never block on parse/embed
🔍 Hybrid retrieval	Dense meaning + sparse terms, fused with RRF
📎 Source grounded	Answers carry chunk citations
🔒 User scoped	Retrieval and deletes are filtered by ownership
🧩 Modular monorepo	Shared clients in `packages/*`
🔭 Observable	Optional Langfuse traces end to end
🔌 Decoupled parsing & embedding	Re-embed without reparsing via `ParsedChunkSet`
➕ Extensible modalities	New types need only a new parser worker

🧠 RecallOS

Search your knowledge. Cite your sources.
